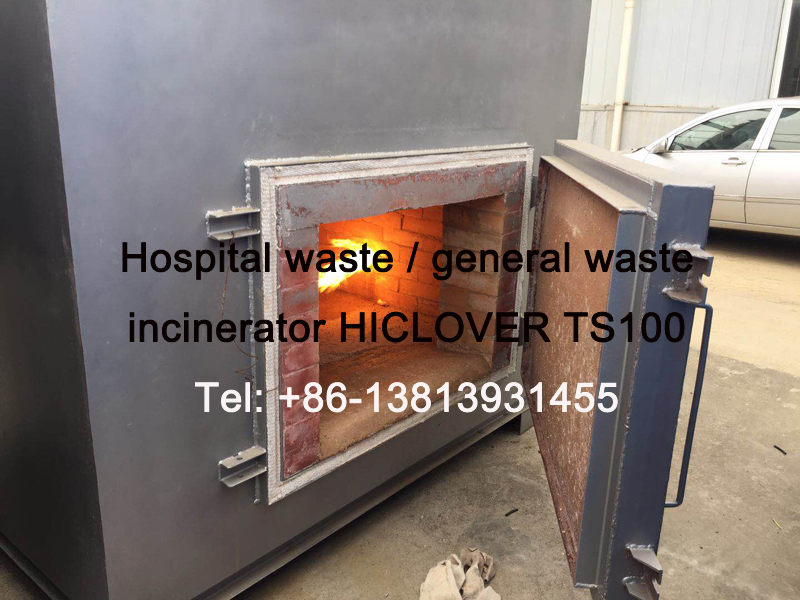

Hospital waste / general waste incinerator HICLOVER TS100

Items/Model

TS100(PLC)




Principle

Waste Incineration Treatment

Burn Rate

Average 120 kg/hour

Feed Capacity

Average 200kg/feeding

Control Mode

PLC(Programmable Logic Controller Incinerator)

Combustion Chamber

1200L

Internal Dimensions

120x100x100cm

Secondary Chamber

600L

Smoke Filter Chamber

Yes(Dry Scrubber)

Feed Mode

Manual

Voltage

220V

Power

0.7Kw

Oil Consumption (kg/hour)

Average 20.4

Gas Consumption (m3/hour)

Average 24.5

Temperature Monitor

Digital Display

Temperature Protection

Yes

Oil Tank

200L

Feed Door

80x60cm

Chimney

10Meter

Chimney Type

Stainless Steel

1st. Chamber Temperature

800-1000

2nd. Chamber Temperature

1000-1200

Residency Time

2.0 Sec.

Gross Weight

6000kg

External Dimensions

260x150x180cm



Supply of a hospital waste / general waste incinerator, including auxiliaries, packaging and transport to Sierra Leone (FCA Incoterms) as well as installation and commissioning supervision.
The name plate capacities and attribute requirements are detailed below:
Retort type diesel fuelled incinerator rated at 120kg/h.
Primary and secondary burners with temperature range 850 to 1000 degrees Celsius.
Top mounted chimney, lined and painted externally with high temperature corrosion protection.
Burners and fan controller to be included. The incinerator should run automatically with minimal human intervention to operate.
Stack emissions shall be within the legislative requirements of Sierra Leone as a minimum.
Provision for any special tooling requirements.
Provision of 1 year of spares for services and maintenance.
Provision of any critical or long lead item spares.
The scope of service additional to the supply of the incinerator is as follows:
Provision for packaging the incinerator components into an ISO shipping container, including lashing as required and transporting to the nearest sea port
Supervision of installation and commissioning of the incinerator on site in Sierra Leone.
Personnel Protective Equipment.
