Incinerator Items/Model

HICLOVER TS300(PLC)

Burn Rate (Average)

300 kg/hour

Feed Capacity(Average)

400kg/feeding

Control Mode

PLC Automatic

Primary Combustion Chamber

2000Liters(2.0m3)

Internal Dimensions

1700x1200x1000mm

Secondary Chamber

1000Liters(1.0m3)

Smoke Filter Chamber

Yes

Feed Mode

Manual

Voltage

220V

Power

2.5Kw

Burner Type

Italy Brand

Oil Consumption (kg/hour)

28

N.Gas Consumption (m3n/hour)

***

Temperature Monitor

Yes

Temperature Thermometer

Corundum Probe Tube, 1400℃Rate.

Temperature Protection

Yes

Automatic Cooling

Yes

Automatic False Alarm

Yes

System Testing Model

Yes

Time Setting

Yes

Progress Display Bar

LCD Display

Oil Tank

200L+1000L

Oil Tank Stand

Yes

Liquid level Display

Yes

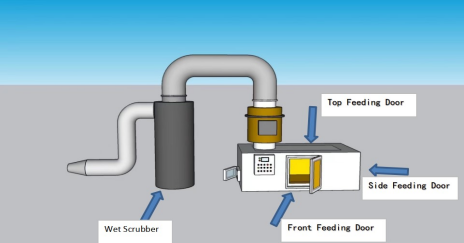

Feeding Door

800x600mm

Feeding Door Location

Default: Side Feeding Door

Optional: Front/Top Feeding Door,

Wet scrubber

Chimney

10Meter

Chimney Type

Stainless Steel 304

1st. Chamber Temperature

800℃–1000℃

2nd. Chamber Temperature

1000℃-1300℃

Residency Time

2.0 Sec.

Gross Weight

11000kg

External Dimensions

4000x2100x3000mm(without chimney)

1st. Chamber Composition Hot Face

High alumina refractory brick Thickness: ≥115 mm

Composition 55% of Al203

1750°C Grade

2nd. Chamber Composition Hot Face

High alumina refractory brick Thickness: ≥115mm

Composition 75% of Al203

1790°C Grade

Chamber Cold Face Material

High Rate Refractory Ceramic Fiber

Other Parts Hot Face Refractory

Heavy Duty with steel fiber

Burner operation

Automatic On/Off

Dry Scrubber

Including

Wet Scrubber

Optional

Top Loading Door

Optional

Front Loading Door

Optional

Side Loading Door

Default

Paint for outside face

250°C Grade

Sealing Material

Refractory Ceramic Fiber

Upgrade Containerized Mobile Type

none

CE Certificate

CE(2006/42/EC,2014/30/EU

ISO Certificate

 ISO9001:2015

High-tech Enterprise Certificate

Yes
